OEM Grid Window type Pallet Mould Suppliers, Company - Taizhou Huangyan Rongdu Mould Co., Ltd.

Grid Window type Pallet Mould

RongDu Mould have more than 30 years experience for the pallet mould, we have make more than 500 units pallet mould every year. We received high praise from our customer all over the world.
RongDu Mould focus on pallet mould design, we adopt valve gate hot runner system, help our customer to save raw material and time. RongDu Mould optimize the design of cooling system to reduce the cycle time. We use good mould steel to make longer mould life.

We have advanced and complete testing equipment to ensure the quality of our products.

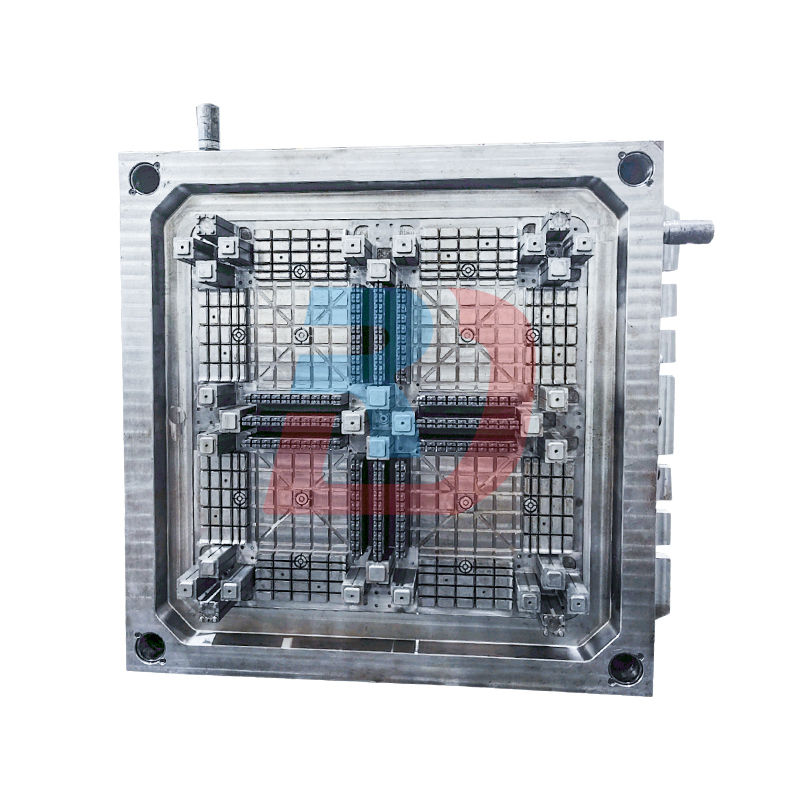

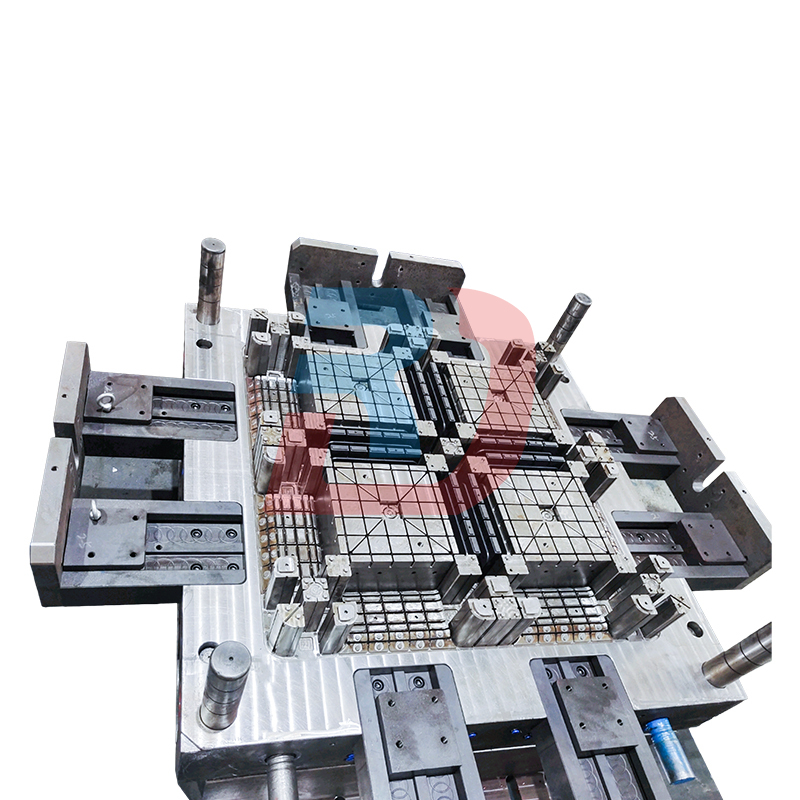

Mould Name	1210 Pallet Mould
Product Size	12001000160mm

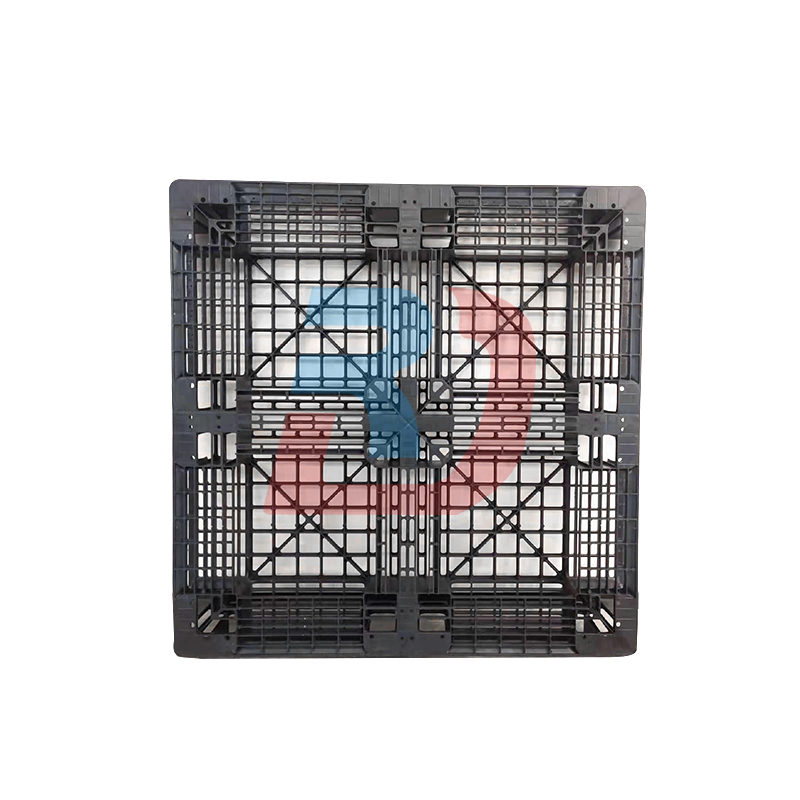

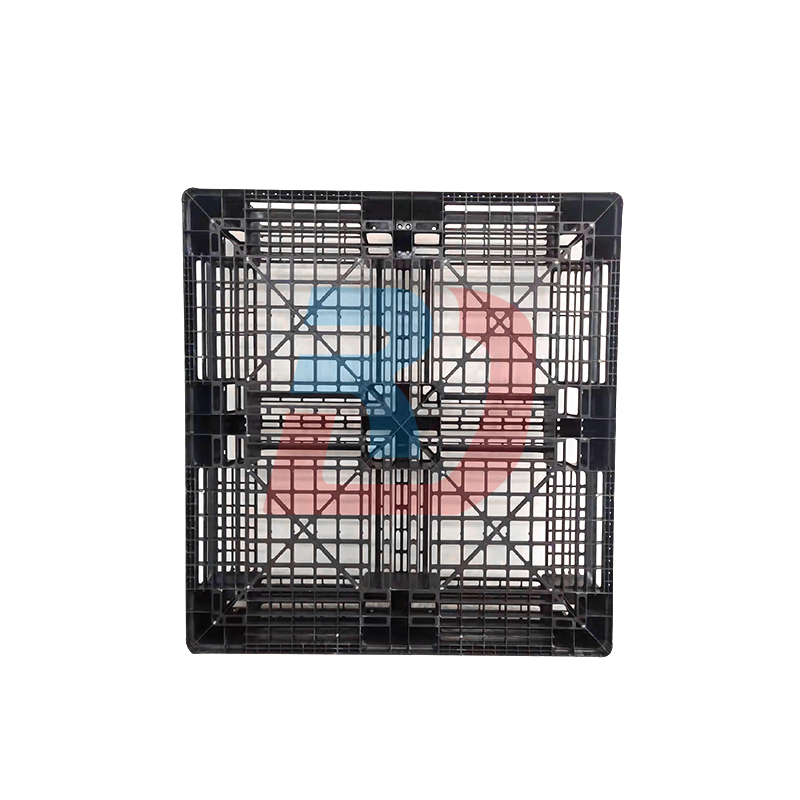

Product Description	Grid Window type with 4 sliders
Mould Size	175017501100mm
Mould Cavity	1 cavity
Product Material	HDPE/PP
Product Weight	22.4kg
Mould Injection System	26tips China Brand Hot Runner
Mould Ejetion System	Ejector Pin & Ejector Plate
Mould Cycle Time	135s
Cor/Cav Mould Steel	Pre-hardened P20 with forging technology & HRC38-45°
Interchangeable Block & Slider Steel	Pre-hardened 718H with HRC36-40°
Mould Components	DME/HASCO standard parts.
Mould Life Guarantee	1 Million Shots
Hydraulic Cylinder	Made in Taiwan
Surface Treatment	Polishing/Texture
Delivery Time	70 Working Days

RongDu Pallet Mould pass the stable loading test, shelf loading test, dynamic test.
RongDu Mould is master for pallet mould. Come on for wonderful pallet mould.

Taizhou Huangyan Rongdu Mould Co., Ltd.

Rongdu mold Co., Ltd. is well-known China Grid Window type Pallet Mould suppliers with more than 30 years of experience in the professional development and manufacturing of all kinds of plastic mold. The company specializes in producing plastic tray molds, turnover box molds, trash cans molds and daily necessities molds. It is located on the coast of the East China Sea, Zhejiang Huangyan, which is known as the kingdom of mold, with convenient transportation and superior geographical location.
In recent years, as a leading OEM Grid Window type Pallet Mould company the company has owned several CNC processing equipment of Japan and Taiwan, with the introduction of the advanced technology at home and abroad. We now have advanced CAD / CAM design system, large CNC machining center, CNC wire cutting equipment, high-precision electric spark and deep hole drilling and other processing equipment. We have accumulated rich production experience and realized the integration of mold development, design and manufacturing after years of mold development and manufacturing.
With the continuous development of the company, the products have been exported to many places including Europe, America, the Middle East, South Africa and Southeast Asian countries.
Rongdu Mold sincerely welcome new customers to call or write to negotiate! We look forward to sincere cooperation, joint efforts, mutual benefit and win-win situation!
