1210 Three Skid with Steel Insert Pallet Mould

Pallet Mould

RongDu Mould have more than 30 years experience for the pallet mould, we have make more than 500 units pallet mould every year. We received high praise from our customer all over the world.

RongDu Mould focus on pallet mould design, we adopt valve gate hot runner system, help our customer to save raw material and time. RongDu Mould optimize the design of cooling system to reduce the cycle time. We use good mould steel to make longer mould life.

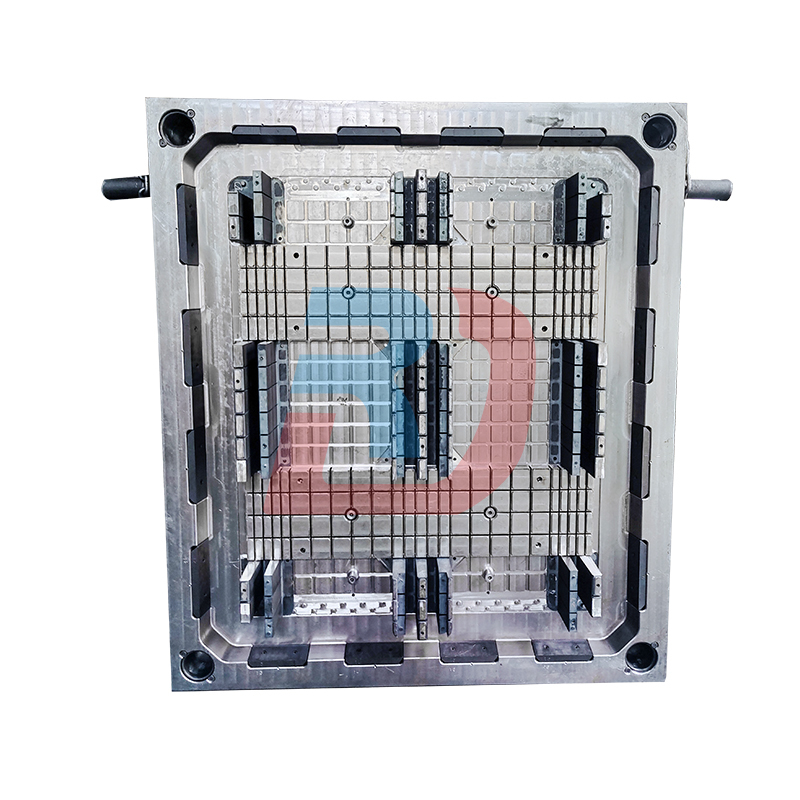

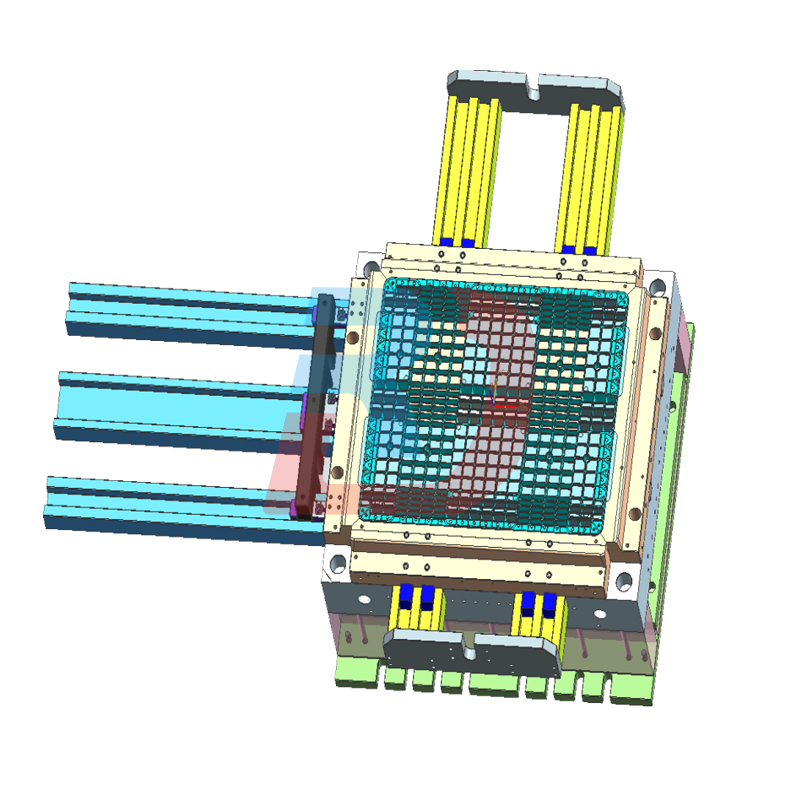

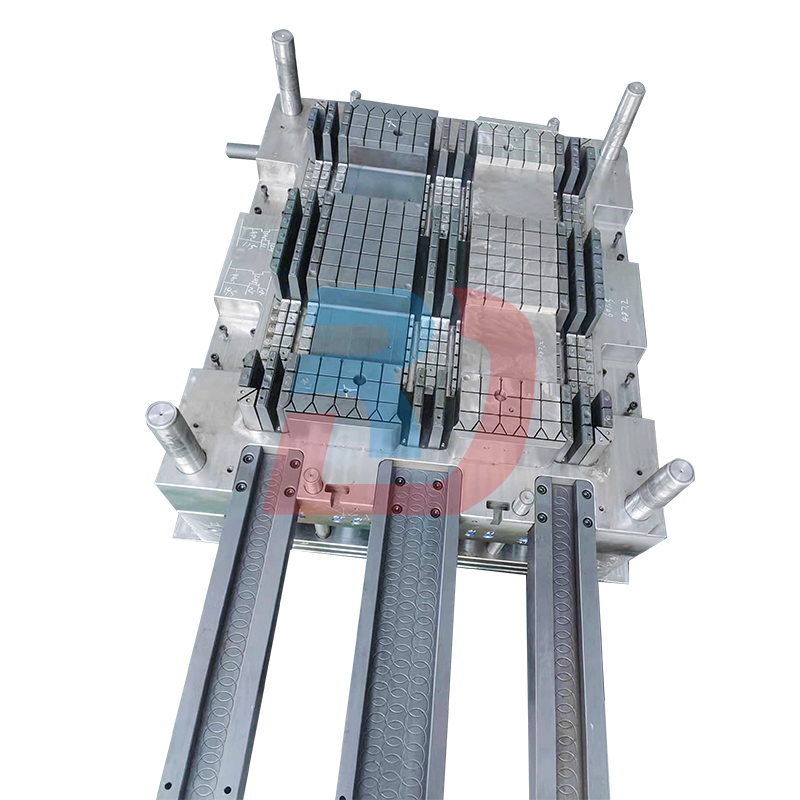

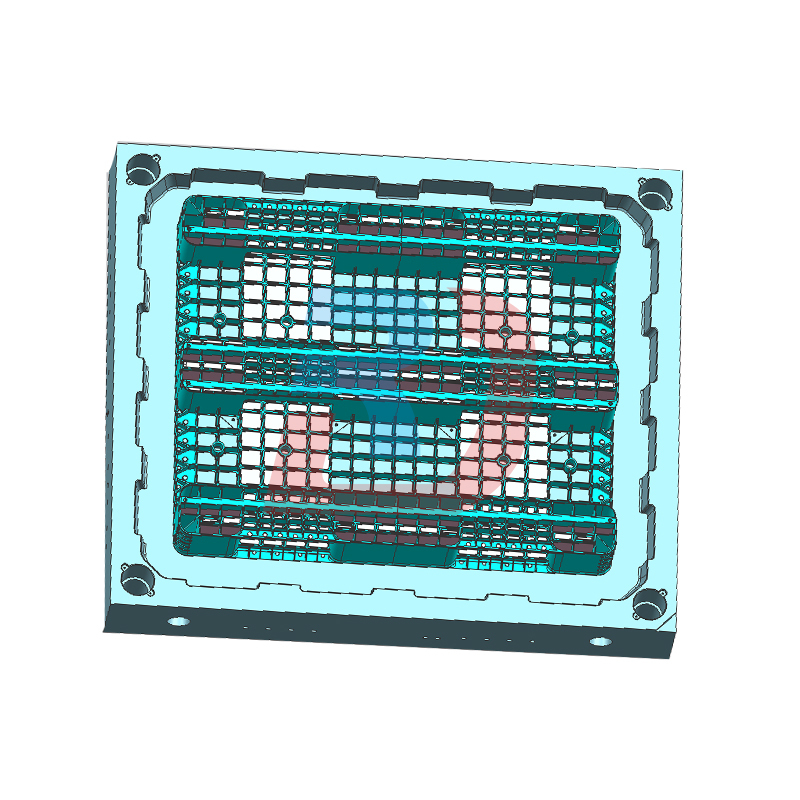

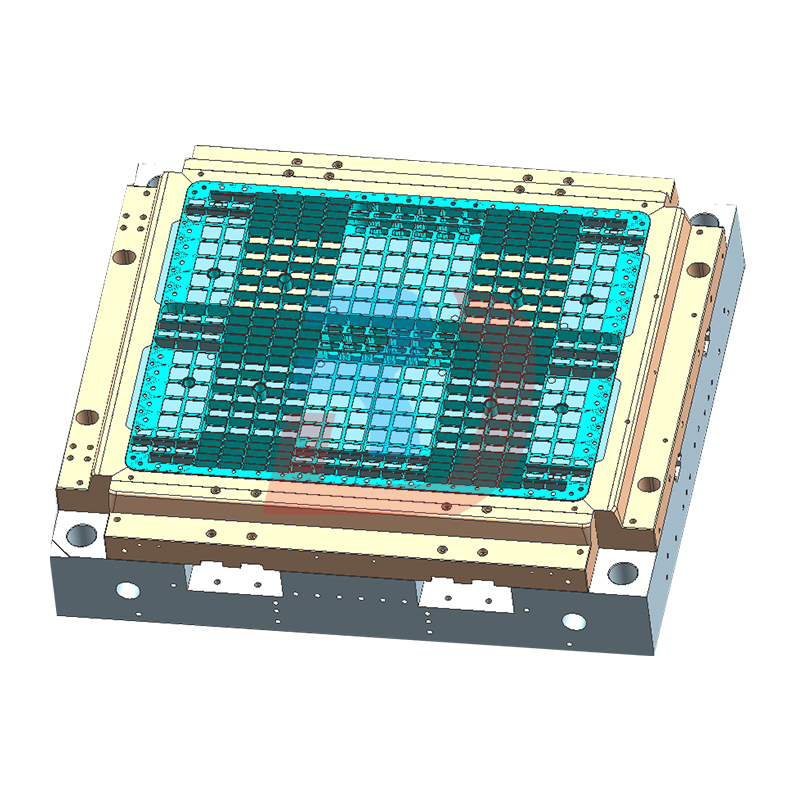

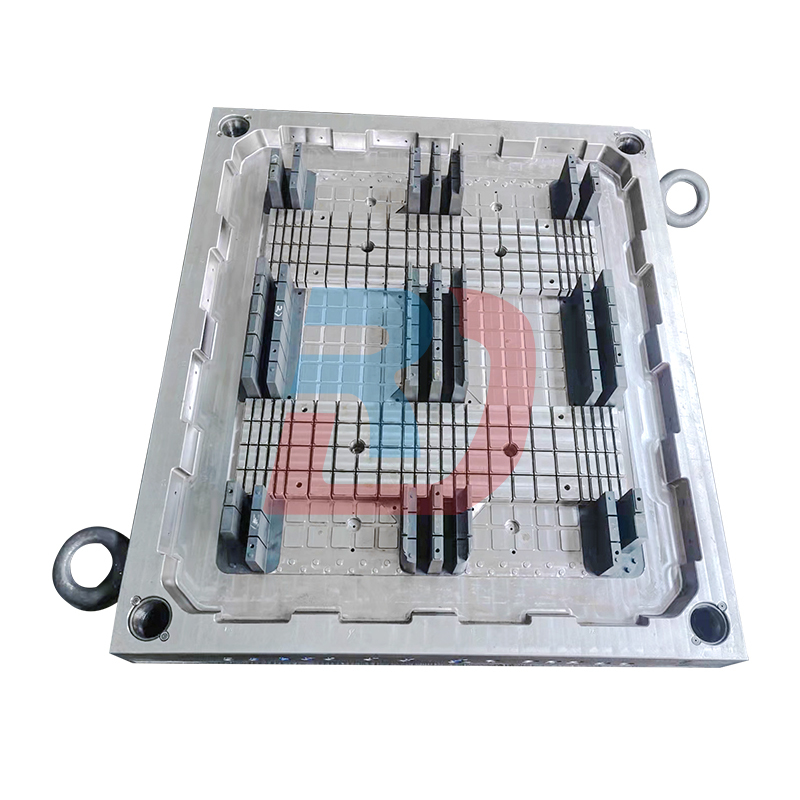

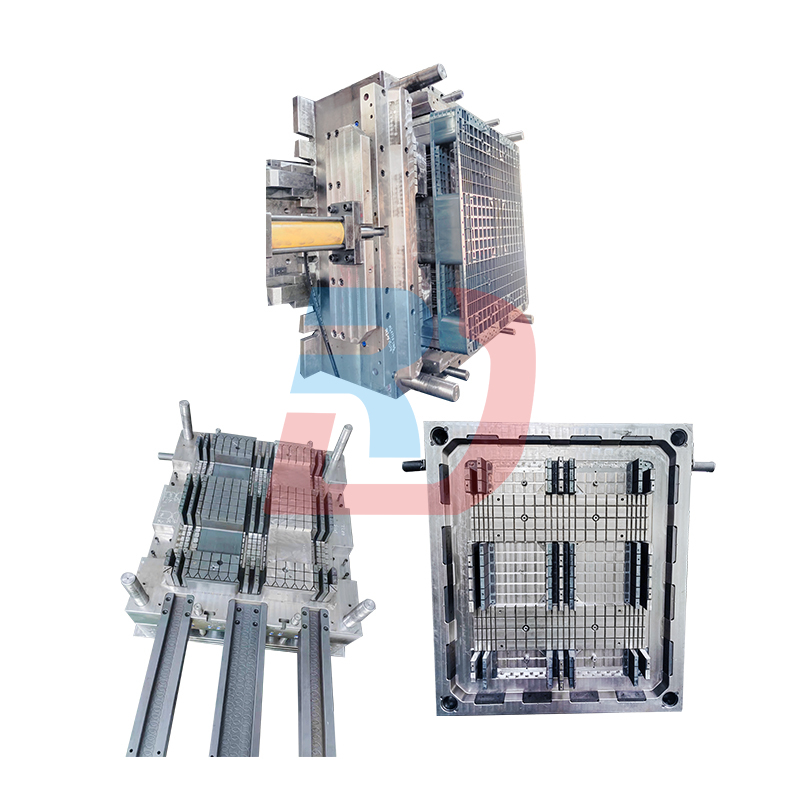

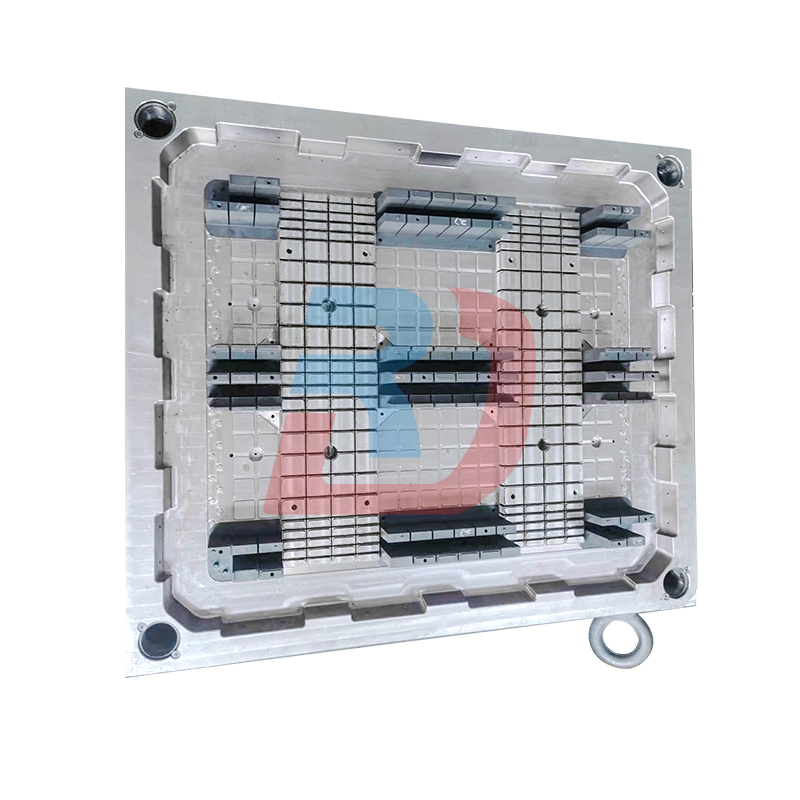

1210 Three Skid with Steel Insert Pallet Mould

We have advanced and complete testing equipment to ensure the quality of our products.

Mould Name：	1210 Three Skid with Steel Insert Pallet Mould
Product Size：	12001000150mm
Product Description：	Three skid type pallet,logical pallet mould, steel inside pallet mould,transport pallet mould,integrated pallet mould,storage pallet mould,industrial pallet mould,reinforced pallet mould
Mould Size：	157015701022mm
Mould Cavity：	1 cavity
Product Material：	HDPE
Product Weight：	10.7kg
Mould Injection System：	10tips China Brand Hot Runner
Mould Ejetion System：	Ejector Pin
Mould Cycle Time：	100s
Cor/Cav Mould Steel：	pre-hardened HP20 with forging and tempered technology
Mould Basement：	S45C with forging and tempered technology
Interchangeable Block & Slider Steel：	718H with Nitrided
Insert Steel：	2738 steel
Mould Components：	DME/HASCO standard parts.
Mould Life Guarantee：	1 Million Shots
Hydraulic Cylinder：	Made in Taiwan
Surface Treatment：	Polishing/Texture
Delivery Time：	70 Working Days

RongDu Pallet Mould pass the stable loading test, shelf loading test, dynamic test.
RongDu Mould is master for pallet mould. Come on for wonderful pallet mould.
