1100*1100*150mm plastic injection logistics skid pallet mold

"Making Logistics More Faster" is our final achievement. So Rongdu Mould devote ourselves to logistics industrial for more than 30 years, so we are good at the Pallet Mould manufacturing.
1100*1100*150mm plastic injection pallet is welcomed on market. Customer require good quality of plastic pallet, so that it could be multi-using.
In order to support better quality pallet, Rongdu pay highly attention on the Mold Quality. Rongdu have strong design team, we make many optimizations from hot runner system, cooling system, ejection system, and using well standard mold raw material, like HP20,H718,2738,S136 etc.
Rongdu Mould support more than 600 sets mould, including more than 500 sets pallet mould annually, and won a good reputations from our regular customer.

We have advanced and complete testing equipment to ensure the quality of our products.

Basci Info:

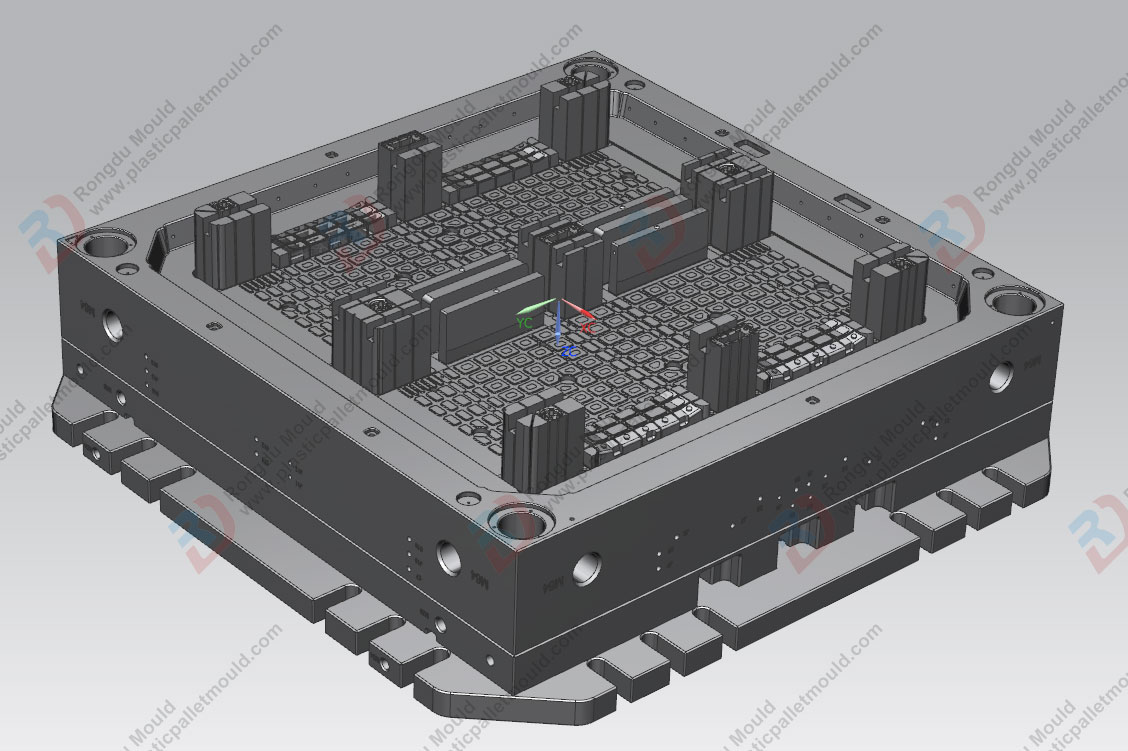

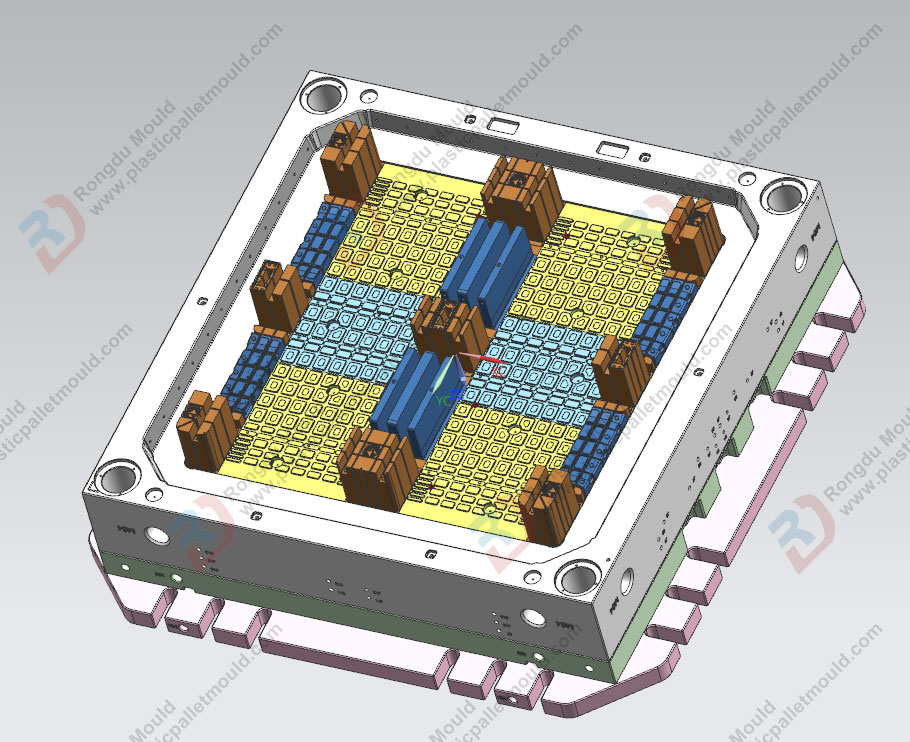

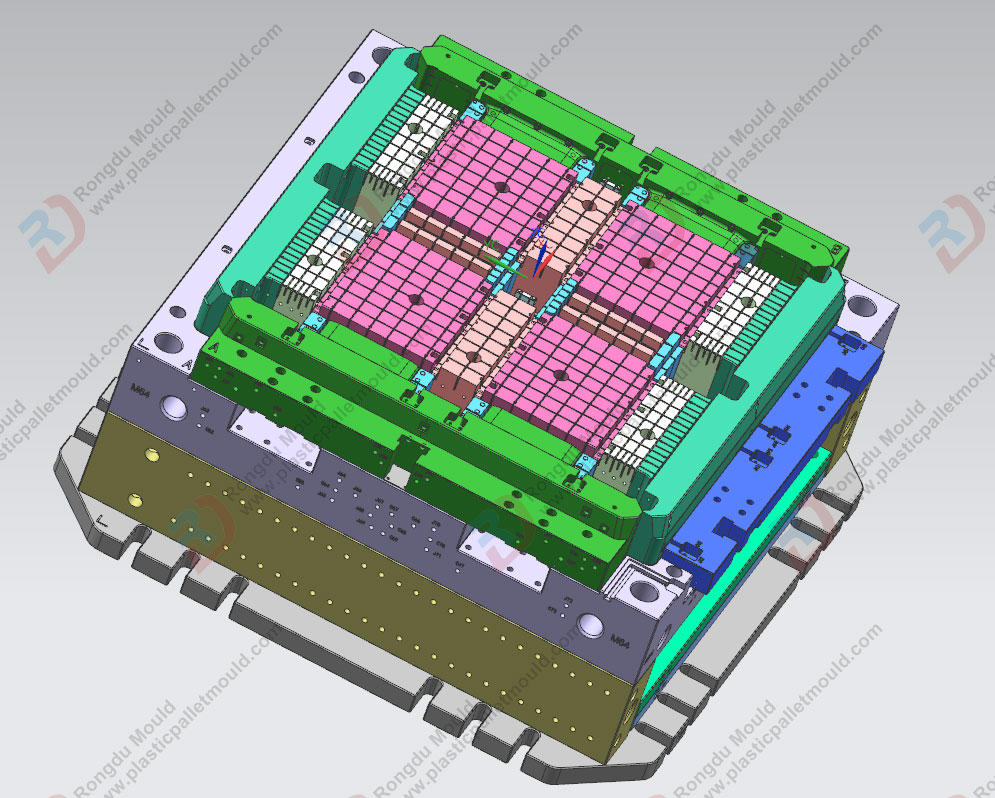

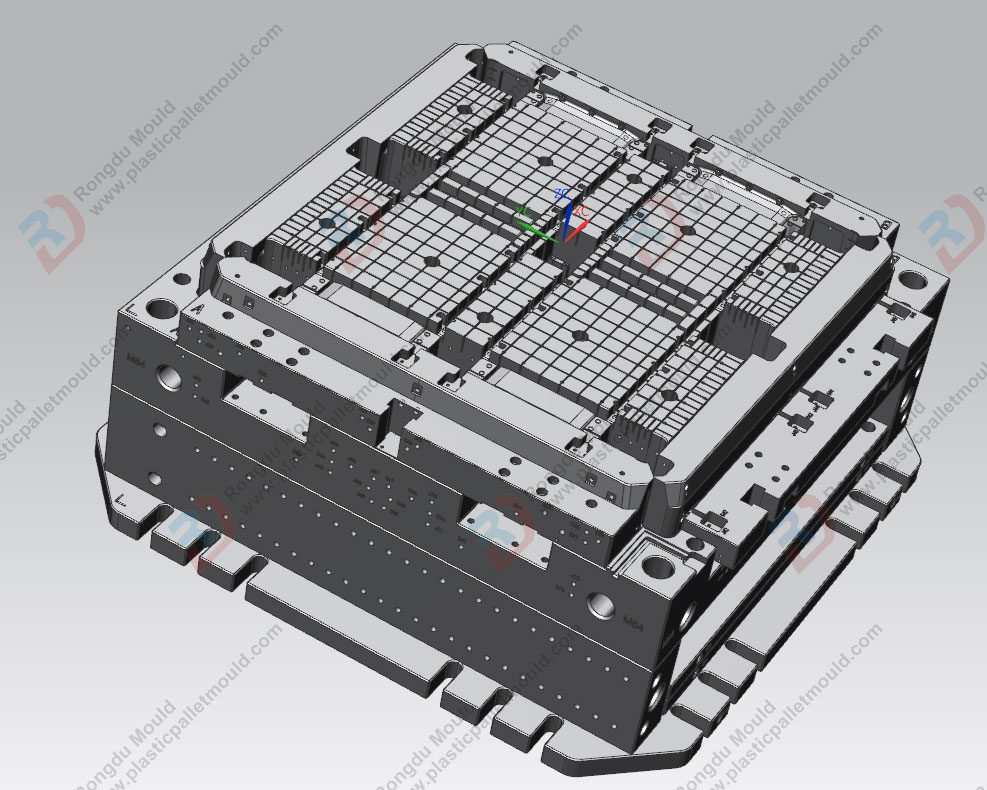

Mold Name:1100*1100*150mm Plastic Injection Skid Pallet Mold
Application: Logistics Transportation Industrial
Certification:TUV

Product Info:

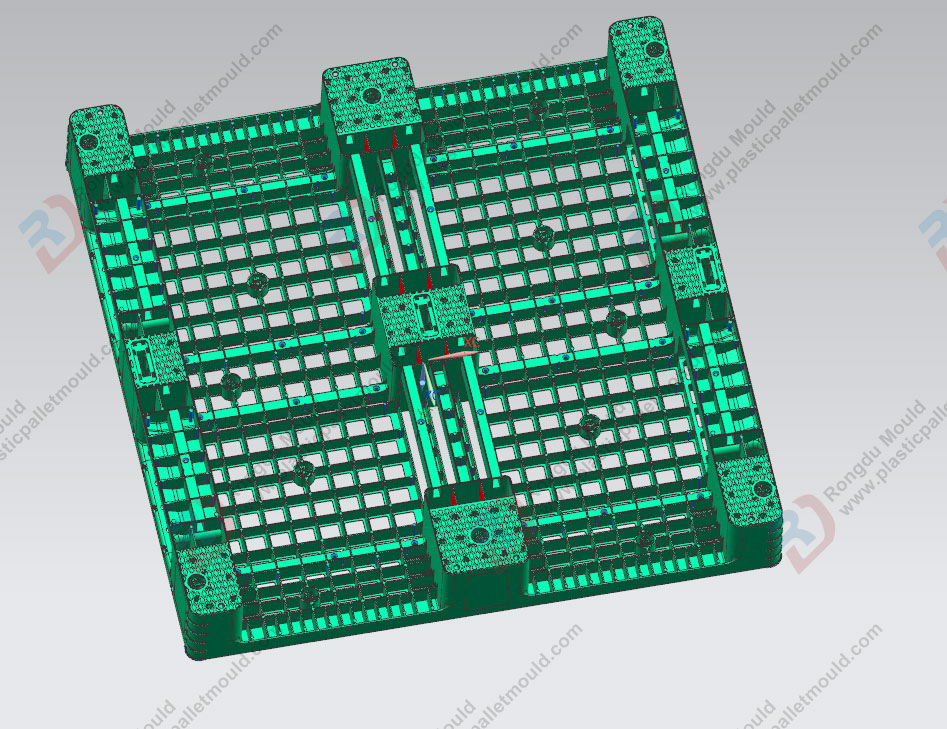

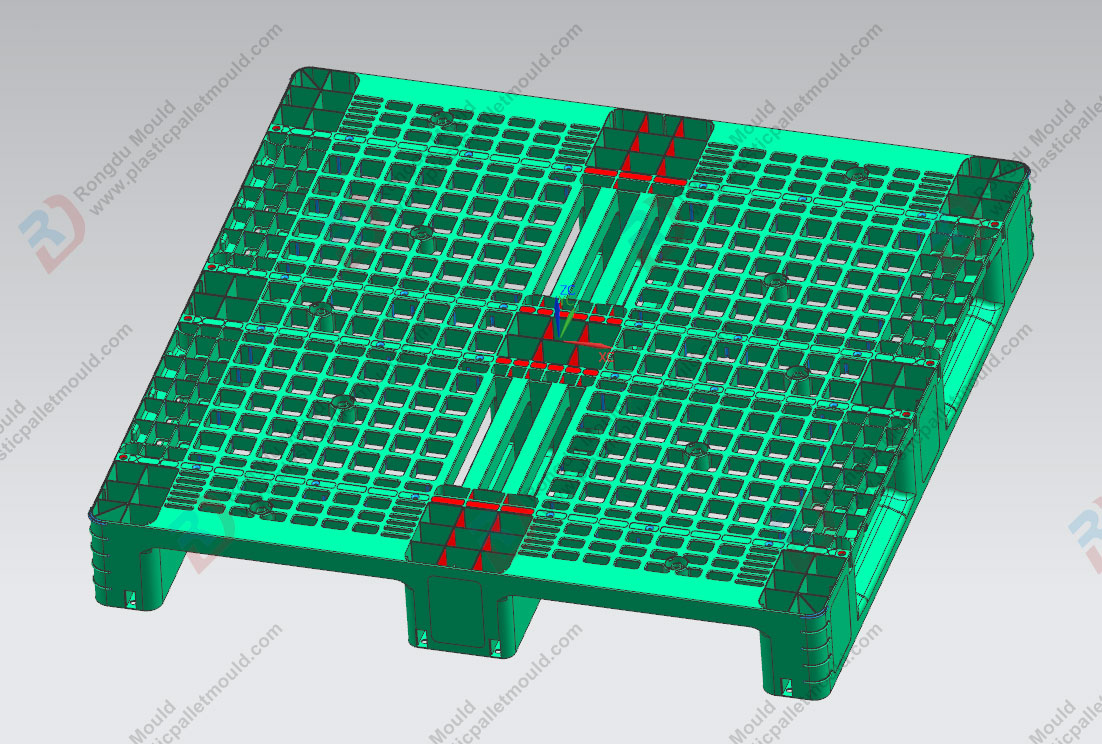

Pallet Size:1100*1100*150mm
Plastic: HDPE/PP
Pallet Weight:13kg(HDPE)
Pallet type: Skid, Grid, Net, Four-Entrance

Mold Info:
Mold Size:1900*1900*1200mm
Steel for Mold Basement: S50C#
Steel for Mold Core & Cavity: HP20,H718,2738,S136
Steel Treatment Technology: Quenching, Heat Treatment, Pre-Hardening
Mold Design Program: UG(NX), AutoCAD, SolidWorks
Hot Runner System: YUDO, MoldMaster, Chinese brand
Cooling System: inserted Beryllium-Cooper(BeCu)
Ejection System:Ejector Pin & Plate
Hydraulic Cylinder: Taiwan Brand
Mold Tooling Tolerance: within 0.01mm
Mold Spare Part: DME/HASCO standard
Mold Surface Treatment: High Gloss Polishing & Texture
Mold Cycle Time: 100S
Mold Life: more than 500K Shoots
T0 Time: 70 days
Mold Delivery: 75 days
Transport Package: Wooden Case
Mold Guarantee:1 Year

Taizhou Huangyan Rongdu Mould Co., Ltd.

Rongdu mold Co., Ltd. is well-known China 1100*1100*150mm plastic injection logistics skid pallet mold suppliers with more than 30 years of experience in the professional development and manufacturing of all kinds of plastic mold. The company specializes in producing plastic tray molds, turnover box molds, trash cans molds and daily necessities molds. It is located on the coast of the East China Sea, Zhejiang Huangyan, which is known as the kingdom of mold, with convenient transportation and superior geographical location.
In recent years, as a leading OEM 1100*1100*150mm plastic injection logistics skid pallet mold company the company has owned several CNC processing equipment of Japan and Taiwan, with the introduction of the advanced technology at home and abroad. We now have advanced CAD / CAM design system, large CNC machining center, CNC wire cutting equipment, high-precision electric spark and deep hole drilling and other processing equipment. We have accumulated rich production experience and realized the integration of mold development, design and manufacturing after years of mold development and manufacturing.
With the continuous development of the company, the products have been exported to many places including Europe, America, the Middle East, South Africa and Southeast Asian countries.
Rongdu Mold sincerely welcome new customers to call or write to negotiate! We look forward to sincere cooperation, joint efforts, mutual benefit and win-win situation!
